TCPS1D41Y040 (400W)

TCPS1D41Y040 (400W)
model:TCPS1D41Y040

TCPS1D41Y040 (400W)

Safety Approval
Meet CE Rohs 、REACH
Operation Temp.: 0°C~50°C
High Efficiency

1.Watts:400W


2.Input:
Voltage: 100 - 240Vac Full Range

Frequency: 50 - 60Hz.
Input current: 10 for 115V AC, 5A for 230VAC.
Inrush current: 25A for 115VAC, 50A for 230VAC


3.Output:

DOWNLOAD PDF

 Voltage:
+5V DC
+12V DC
-12V DC
+3.3V DC
+5V SB
 Maximum Load:
25A
33A
0.8A
25A
3.5A
 Minimum Load:
0.1A
0.1A
0A
0.1A
0A
 Ripple/Noise Max.(P-P):
50mv
120mv
120mv
50mv
50mv
 Line Regulation:
±5﹪
±5﹪
±10﹪
±5﹪
±5﹪
Note:
1. The combined power from +3.3V & +5V shall not exceed 170W.
2.The max total power shall not exceed 400W.


◎  FEATURES:
* ATX PS II

* Full Range AC Input
* Efficiency: The minimum efficiency shall be 80% with full load and 115Vac/60Hz.
* Hold-Up Time: The output voltages stay in regulation at least 18ms with 70% load after loss of AC input.
* Over Current Protection
* Over Voltage Pretection
* Short Circuit Protection
* Over Temperature Protection
* Environmental Requirement:
    Temperature:
    Operating :0℃ to +50℃
    Non Operating: -20℃ to +70℃
    Humidity:
    Operating : 5% to 95%, non-codensing
    Non Operation: 20% to 90%, non-condensing
    Altitude:
    Altitude during operation: Up to 5000m
    Cooling Method:
    By ball bearing DC fan.
    *Reliability MTBF : Using MIL - HDBK -217F the calculated MTBF>100,000 hours at 25℃.


4.Dimensions:

L x W x H:  140 x  150  x 86 (mm)  /  5.51 x 5.91 x 3.39  (inches)

DOWNLOAD PDF


5.DownLoad:

UL TUV CB CE FCC BSMI CCC




6.Connectors:

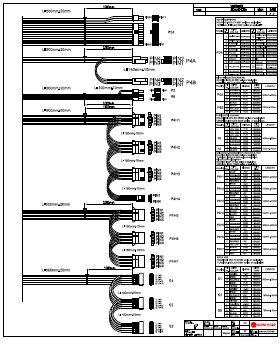

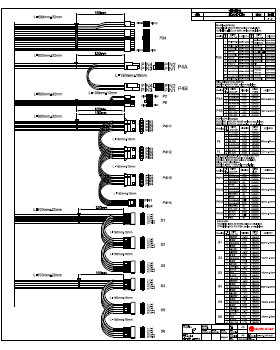

Wireout_1D41stdA_20161230                     Wireout_1D41stdB_20161230



7.Others Certificates:

REACH RoHS
