model：TCPS1D41Y060

TCPS1D41Y060 (600W)

Safety Approval
Meet CE Rohs 、REACH
Operation Temp.: 0°C~50°C
High Efficiency

Details

1.Watts：600W

2.Input：
Voltage: 100 - 240Vac Full Range
Frequency: 50 - 60Hz.
Input current: 10 for 115V AC, 5A for 230VAC.
Inrush current: 25A for 115VAC, 50A for 230VAC

3.Output：

DOWNLOAD PDF

Voltage:	+5V DC	+12V DC	-12V DC	+3.3V DC	+5V SB
Maximum Load:	25A	49A	0.8A	25A	3.5A
Minimum Load:	0.1A	0.1A	0A	0.1A	0A
Ripple/Noise Max.(P-P):	50mv	120mv	120mv	50mv	50mv
Line Regulation:	±5﹪	±5﹪	±10﹪	±5﹪	±5﹪

Note:

1. The combined power from +3.3V & +5V shall not exceed 180W.

2.The max total power shall not exceed 600W.

◎ FEATURES:
＊ ATX PS II
＊ Full Range AC Input
＊ Efficiency: The minimum efficiency shall be 80% with full load and 115Vac/60Hz.
＊ Hold-Up Time: The output voltages stay in regulation at least 18ms with 70% load after loss of AC input.
＊ Over Current Protection
＊ Over Voltage Pretection
＊ Short Circuit Protection
＊Over Temperature Protection
＊ Environmental Requirement:
    Temperature:
    Operating :0℃ to +50℃
    Non Operating: -20℃ to +70℃
    Humidity:
    Operating : 5% to 95%, non-codensing
    Non Operation: 20% to 90%, non-condensing
    Altitude:
    Altitude during operation: Up to 5000m
    Cooling Method:
    By ball bearing DC fan.
    ＊Reliability MTBF : Using MIL - HDBK -217F the calculated MTBF＞100,000 hours at 25℃.

4.Dimensions：

L x W x H: 140 x 150 x 86 (mm) / 5.51 x 5.91 x 3.39 (inches)

DOWNLOAD PDF

5.DownLoad：

TUV

FCC

BSMI

CCC

6.Connectors：

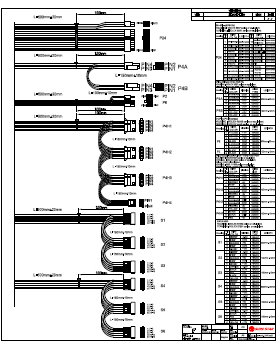

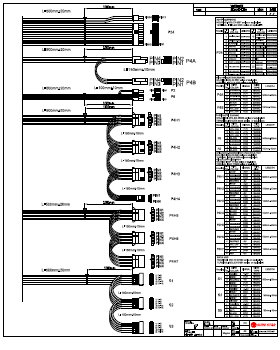

Wireout_1D41stdA_20161230 Wireout_1D41stdB_20161230
