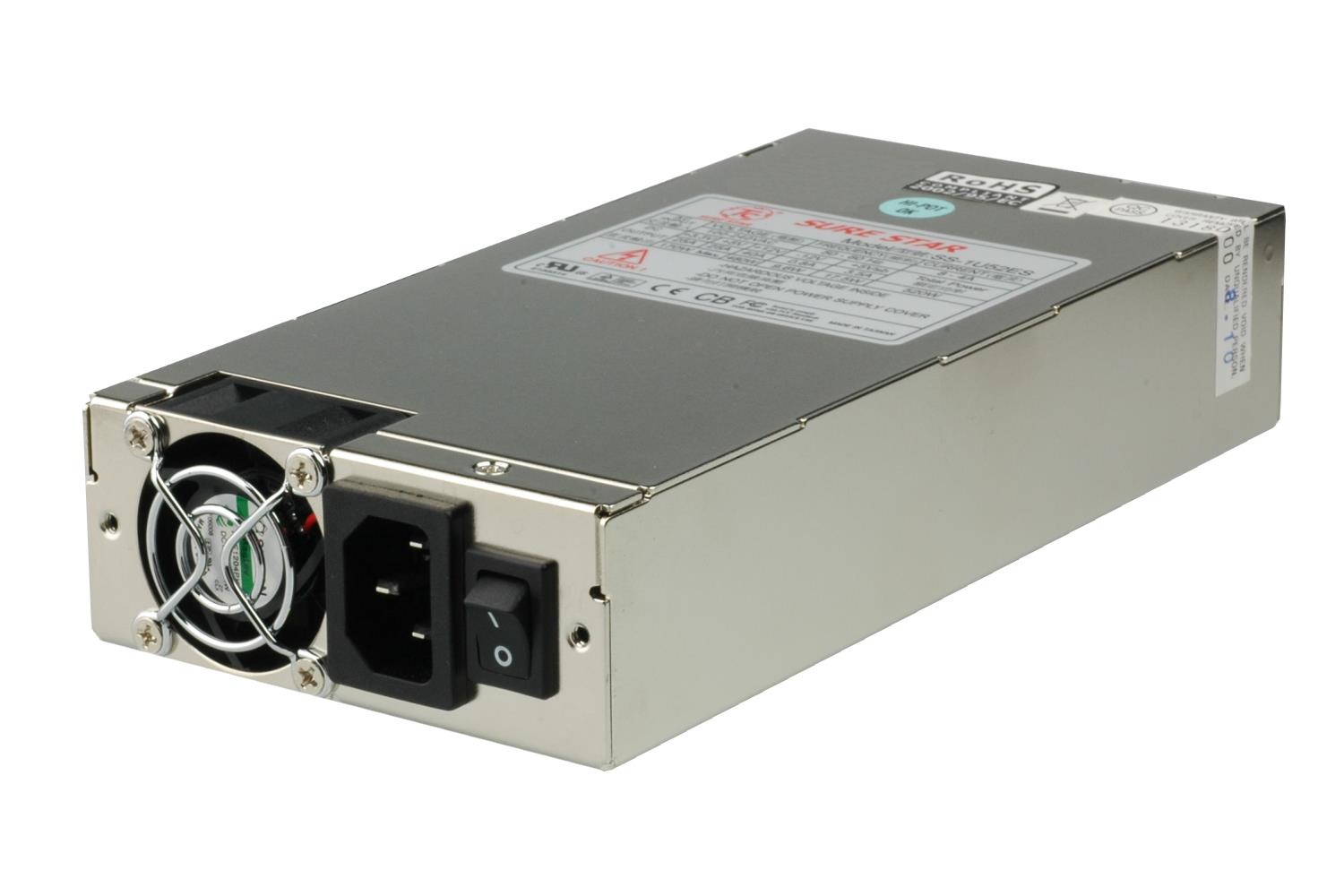

400W Single Power Supply for 1U

400W Single Power Supply for 1U
model:SS-1U40ES

400W Single Power Supply for 1U

1U FORM FACTOR
OPERATION TEMPERATURE: 0°C~45°C
File download

INPUT SPEC.

★Input voltage: 100 - 240Vac Full Range.
★Frequency: 50 - 60 Hz.
★Input Current: 8A for 115Vac, 4A for 230Vac.
★Inrush Current: 35A Max. for 115Vac, 55A Max. for 230Vac.
★Efficiency: TYPICAL >86% AT 115VAC, FULL LOAD.                                                                                            ★Input Power Factor: The minimum power factor at full load shall be 0.98/115V 60 Hz and 0.95/230V 50 Hz.

OUTPUT WATTAGE

400W



DC OUTPUT CHARACTERISTIC

Output Voltage Min. Current Max. Current Regulation Ripple & Noise
+3.3V 0.5A 25A ±5% 60mV
+5V 0.5A 25A ±5% 60mV
+12V 2A 32A ±5% 120mV
-12V 0A 0.8A ±5% 120mV
+5VSB 0.1A 3.5A ±5% 60mV

♦The combined total power from +3.3V and +5V shall not exceed 160W.

♦The max total power shall not exceed 400W.



FEATURES
★Temperature Range: Operating 0℃ to +45℃, Storage –20℃ to +70℃
★Hold up time: 16ms at maximum load & normal input voltage.
Over Voltage Protection
★Over Power Protection
★Short Circuit Protection
★Safety: To meet UL, TUV, CB, CE, FCC.

DIMENSION   Outline download

L x W x H:  200 x  100  x 40.5 (mm)  /  7.87 x 3.94 x 1.59 (inches)



DOWNLOAD

UL   CB   TUV   CE   FCC   BSMI   CCC   ROHS   REACH



PACKAGE & WEIGHT

MODEL: SS-1U40ES NET WEIGHT GROSS WEIGHT OUTER CARTON DIMENSION
8PCS / 1 CARTON 13.30KGS 15.10KGS 48 x 40 x 19 CM
29.26LBS 33.22LBS 18.89x15.74x7.48 INCHES
